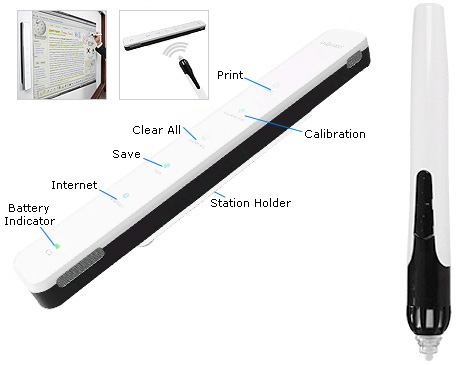

| uBoard |
|
 The PenAndFree’s uBoard is fully-featured interactive whiteboard system that transforms any flat surface into an INTERACTIVE whiteboards instantly.
uBoard empowered by PenAndFree’s patented technologies promises unbeatable writing quality and high performance.
Additionally, its elegant & stylish design maximizes your pride of teaching and lecture in any place.
Using uBoard, you can get countless benefits well beyond your legacy whiteboard.
Just possible right now uBoard
uBoard will be the most practical portable interactive whiteboard system you've experienced.
it is possible by adopting PenAndFree's patented echnologies and rich experiences in digital
writing system.
These features enable uBoard to be positioned as unique system satisfying quality, stability,
durability, user convenierce and even price.
For anyplace prepared beam projector, computer and veritical flat surface, uBoard simply
makes it INTERACTIVE lecture environment in a second |
| |
| HIGHLIGHT |
|
| High performance |
|
 |
Adopting dedicated ASICchipset |
|
High resolution |
|
Fast response time. |
|
No jittering |
|
|
|
| Best writing quality |
|
The smooth writing touch feel |
|
Virtual pressure feature |
|
Brush effects without programming |
|
Minimizing eye-strains |
|
High sensivity for pen movement |
|
The "state-of-art" noise filtering |
|
|
|
| Excellent Usability |
|
100 inches working area |
|
100% compatible with MS Tablet |
|
Slim & Stylish appearance |
|
Bundled powerful board software |
|
Wireless model available |
|
Easy access buttons |
|
High portability |
|
Rechargeable Battery for Pen |
|
Easy to mount (Magnet & Holder) |
|
Window XP / Windows Vista / Windows 7 |
|
100% compatible with MS HID standard |
|
|
|
|
| |
|
 |
|
| KEY BENEFITS |
|
|
Inspire Lecture - Our interactive enabling feature in any vertical flat surface makes you differentiated presentation |
|
Constant Learning - Our simple and robust architecture means no downtime. |
|
Cost-effective - uBoard makes it possible to build the most effective digital lecture system at the most attractive price. |
|
Enough working Area - uBoards nrmally supports 100 inches working screen (ideally 120 inches), enough working space for most of education environment. |
|
No need to learn - It's easy and intuitive software
doesn't require additional time to learn its functions. |
|
| |
| SPECIFICATIONS |
| |
| Part |
Item |
Description |
| Station |
Effective working area |
100 inches (120 inches ideally) |
| Technology |
IR + Ultrasound with PenAndFree's VPOT |
| USB Device Class |
Microsoft Standard pen device |
| Sampling frequency |
70Khz |
| Accuracy |
Approximatley ± 1.5mm |
| Dimension(lxWxH) |
22mm x 30mm x 17mm |
| Power |
USB 5 Volt/100mA |
|
|
| Part |
Item |
Description |
| Digital Pen |
Power |
3.7V / 180mAH |
| Battery |
Rechargeable Rithum.polymer battery |
| Recharging terminal |
Earphone jack type |
| Button |
2 buttons. Left button,eraser button |
| Battery monitoring |
2 step LED Indicator |
| Full recharging time |
1 hour |
| Continuous pen operating time |
20 hours |
| Power saving mode |
Automatic power saving mode after 30sec idle time |
| USB recharging cable |
USB + Earphone typed Jack (70mm) |
| Dimension (Height x Diameter) |
130mm x 15mm |
|
|
| Part |
Item |
Description |
| Interface |
Computer |
IBM PC/AT or IBM PC compatible (with CD-ROM device) |
| CPU |
Intel Pentium or above or Intel CPU compatible TYPE |
| Interface |
USB 2.0 full speed or USB 1.1 |
| Operating system |
Windows XP/VISTA/Windows 7 |
| RAM |
512MB or more |
|
|
| Part |
Item |
Description |
| Environment |
Humidity |
0-90RH +35°C (Non considering) |
| Recommended operating temperature |
0o to +40°C |
|
|
| Part |
Item |
Description |
| SW Bundled |
PenOnPC |
Calibration SW |
| Ink Note |
Window Journal (for Windows 2000 / XP) |
| U Board Plus |
Board software |
|
|
|
|
